Petrol Generator DAEWOO GDA 7500DPE-3

Petrol Generator DAEWOO GDA 7500DPE-3
Petrol Generator DAEWOO GDA 7500DPE-3
Petrol Generator DAEWOO GDA 7500DPE-3
Petrol Generator DAEWOO GDA 7500DPE-3
Petrol Generator DAEWOO GDA 7500DPE-3
Petrol Generator DAEWOO GDA 7500DPE-3
Petrol Generator DAEWOO GDA 7500DPE-3
Petrol Generator DAEWOO GDA 7500DPE-3
Petrol Generator DAEWOO GDA 7500DPE-3
Petrol Generator DAEWOO GDA 7500DPE-3
6.5 kW
Maximum power
6.0 kW
Rated power
420 cm³
Displacement
15 HP
Engine power
Warranty
945
Where to buy
Find a service
Compare(0)
Petrol Generator DAEWOO GDA 7500DPE-3
Low noise and vibration
Petrol Generator DAEWOO GDA 7500DPE-3
Expanded capacity fuel tank
Petrol Generator DAEWOO GDA 7500DPE-3
AVR (Automatic Voltage Regulator)
Petrol Generator DAEWOO GDA 7500DPE-3
Alternator copper winding
Features
Petrol Generator DAEWOO GDA 7500DPE-3

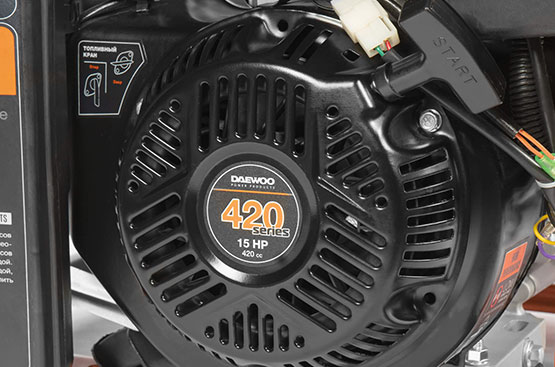

Reliable DAEWOO engine
Specially developed for a series of Expert Line generators. It has an engine life of 1,500 hours. Quality control on all production phases is guaranteed by a unique engine serial number.
Petrol Generator DAEWOO GDA 7500DPE-3
Dual mode operations (230/380V)
The unique Dual Power system makes it possible to use the generator in two modes: for single-phase consumers and three-phase consumers with equally high power efficiency. The selector on the control board allows for changing operating mode with a wave of a hand.
Petrol Generator DAEWOO GDA 7500DPE-3

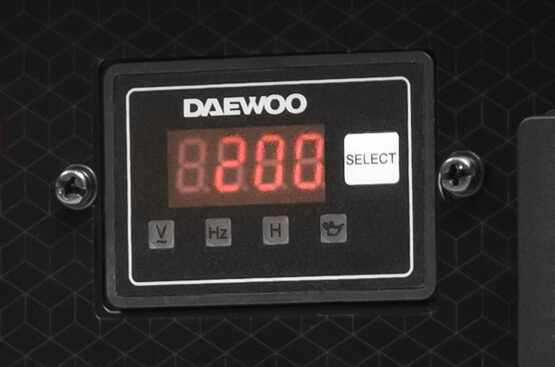

Multifunctional display
The Multifunctional display shows all key operation parameters in real-time such as: voltage, frequency, and the number of hours of operation which can be sustained before the next generator maintenance period falls due.
Petrol Generator DAEWOO GDA 7500DPE-3

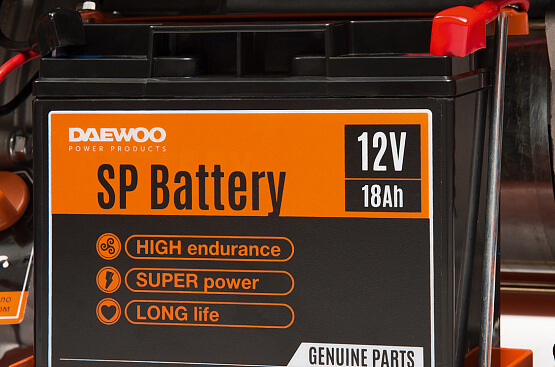

Electric starter
A built-in electric starter and battery make it easier for operators to operate the generator by turning on of the ignition key without pulling the starter. The key makes starting easy and comfortable for users.
Petrol Generator DAEWOO GDA 7500DPE-3

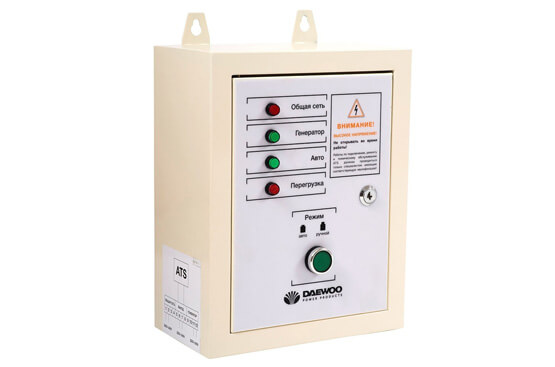

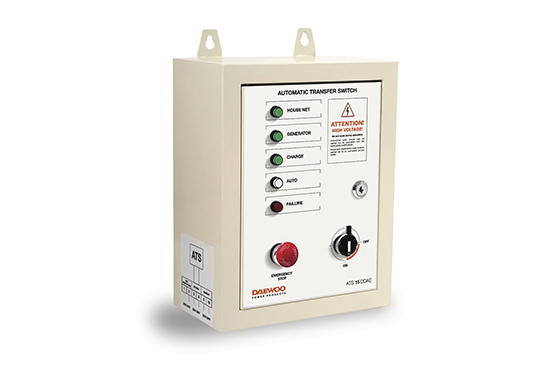

ATS or the automatic transfer switch
The generator is equipped with ATS input. The alternator management system can be connected to the generator during a power outage.
Petrol Generator DAEWOO GDA 7500DPE-3

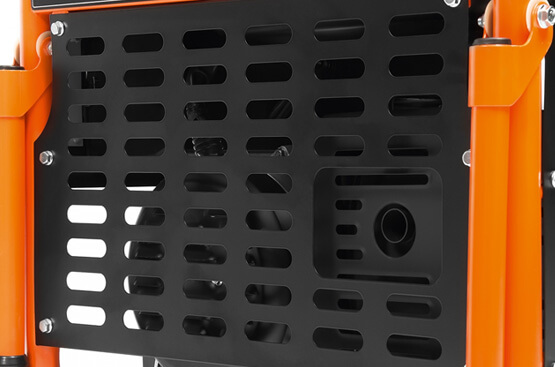

The engine and alternator protection
The generator is equipped with additional steel shields that protects generator components from mechanical damage. The protection is recommended for using on building projects.
Technical Data
Maximum power
6.5 kW
Rated power
6.0 kW
6.5
6.0
6.5
6.0
Voltage
230/380 V
Frequency
50 Hz
Engine type
4-stroke
Engine manufacturer
DAEWOO
Engine model
420
Engine power
15 HP
Displacement
420 cm³
Starting system
manual-electro
Fuel type
Petrol
Fuel tank volume
30 l
Run time 50% load
17 h
Maximum current
32 A
Voltage regulator
AVR
Display
3 in 1
Power Factor
1 Cosφ
Sockets
1x16A 230V, 1x32A 230V, 1x16A 380V
Output 12V
yes
Starter battery
yes
ATS Connector
yes
Transportation kit
1277
Sound power level
95 dB(A)
Weight
86.9 kg
  • The Daewoo engine for professionals
  • Phase selector switch (230V/380V)
  • Electric start
  • The AVR (Automatic Voltage Regulator)
  • The over-current smart protection
  • Key-starting
  • Low-oil level shutdown
  • Low noise level
  • Multifunctional display
  • ATS plug
  • Metal fuel tank
  • The transportation kit
  • The copper alternator
  • Reinforced frame
  • Engine and Alternator Protection
  • Daewoo warranty
