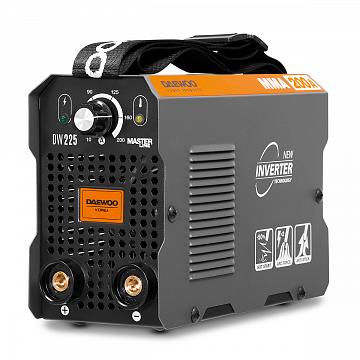

Inverter Arc Welder DAEWOO DW 225

Inverter Arc Welder DAEWOO DW 225
Inverter Arc Welder DAEWOO DW 225
Inverter Arc Welder DAEWOO DW 225
Inverter Arc Welder DAEWOO DW 225
Inverter Arc Welder DAEWOO DW 225
Inverter Arc Welder DAEWOO DW 225
Inverter Arc Welder DAEWOO DW 225
8.5 kW
Power consumption
145-230 V
Voltage
10-200 A
Range of welding current regulation
60 %
ISL at the maximum welding current
Warranty
89
Where to buy
Find a service
Compare(0)
Inverter Arc Welder DAEWOO DW 225
Inverter technology
Inverter Arc Welder DAEWOO DW 225
HОТ START function
Inverter Arc Welder DAEWOO DW 225
ANTI STICK function
Inverter Arc Welder DAEWOO DW 225
ARC FORCE function
Technical Data
Power consumption
8.5 kW
Voltage
145-230 V
Frequency
50 Hz
Insulation class
F
Protection class
IP 21S
Weight
3.6 kg
Range of welding current regulation
10-200 A
Electrode diameter
1.6-5.0
Welding type
inverter
ISL at the maximum welding current
60 %
Input voltage
230 V
Max. current consumption
37 A
HОТ START function
yes
ARC FORCE function
yes
ANTI STICK function
yes
Electrode wire length
1.8 m
Ground wire length
1.2 m
Cooling method
forced air cooling
Operation temperature
-10...+40 °C
Power Factor
0.75 Cosφ
  • Inverter welder
  • Daewoo IGBT (Insulated Gate Bipolar Transistors)
  • Stable operation at grid voltage ranging from 145V to 220V
  • HOT-START (Quick start)
  • ARC-FORCE (Arc force control)
  • ANTI-STICK (Protects electrodes from sticking)
  • Power on time output up to 60%
  • Overheat and overload protection
  • 1.8 meters of electrode support wire
  • Daewoo warranty
