Diesel Generator DAEWOO DDAE 9000SSE

Diesel Generator DAEWOO DDAE 9000SSE
Diesel Generator DAEWOO DDAE 9000SSE
Diesel Generator DAEWOO DDAE 9000SSE
Diesel Generator DAEWOO DDAE 9000SSE
Diesel Generator DAEWOO DDAE 9000SSE
Diesel Generator DAEWOO DDAE 9000SSE
Diesel Generator DAEWOO DDAE 9000SSE
Diesel Generator DAEWOO DDAE 9000SSE
Diesel Generator DAEWOO DDAE 9000SSE
Diesel Generator DAEWOO DDAE 9000SSE
Diesel Generator DAEWOO DDAE 9000SSE
Diesel Generator DAEWOO DDAE 9000SSE
6.3 kW
Maximum power
6.0 kW
Rated power
498 cm³
Displacement
15 HP
Engine power
Warranty
2199
Where to buy
Find a service
Compare(0)

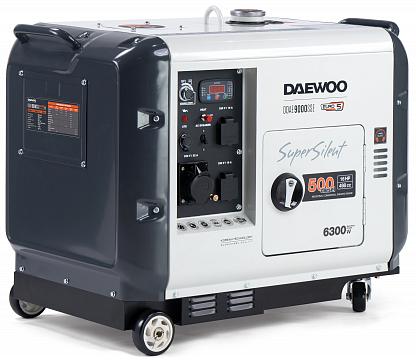

Diesel Generator DAEWOO DDAE 9000SSE
Industrial Engine
Diesel Generator DAEWOO DDAE 9000SSE
Intake manifold preheating
Diesel Generator DAEWOO DDAE 9000SSE
Soundproof housing
Diesel Generator DAEWOO DDAE 9000SSE
AVR (Automatic Voltage Regulator)
Features
Diesel Generator DAEWOO DDAE 9000SSE

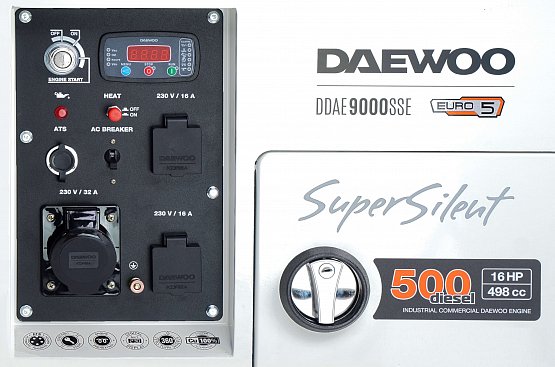

Digital control board
The control board contains a built-in microprocessor that controls automatic start system, remote start system, shut-off protection system. The digital display shows voltage, electric current characteristics and time in operation.
Diesel Generator DAEWOO DDAE 9000SSE

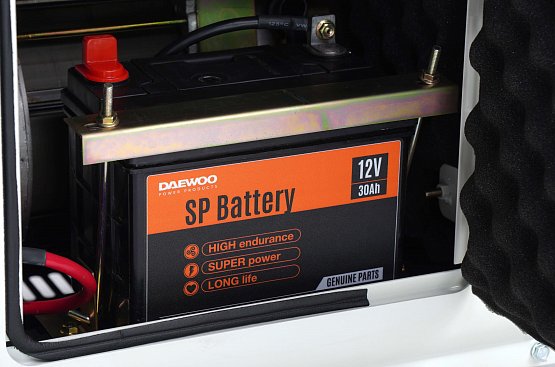

Electric starter
A built-in electric starter and battery make it easier for operators to operate the generator by turning on of the ignition key without pulling the starter. The key makes starting easy and comfortable for users.
Diesel Generator DAEWOO DDAE 9000SSE

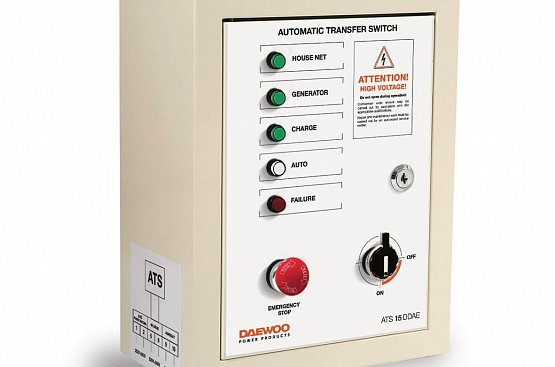

ATS or the automatic transfer switch
The generator is equipped with ATS input. The alternator management system can be connected to the generator during a power outage.
Diesel Generator DAEWOO DDAE 9000SSE

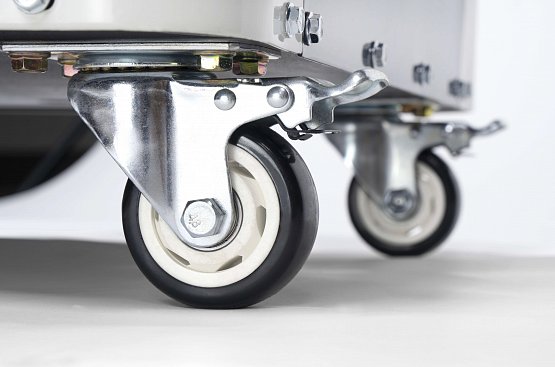

Castor wheels 360°
The wheels facilitate the transportation of the generator. They rotate 360 degrees and make it easy to change the direction of movement. The wheels have a stopper mechanism for reliable fixation of the generator.
Technical Data
Maximum power
6.3 kW
Rated power
6.0 kW
Voltage
230 V
Engine manufacturer
DAEWOO
Engine model
500 diesel
Oil volume
1.65 l
Engine power
15 HP
Displacement
498 cm³
Fuel tank volume
15 l
Fuel type
Diesel
Run time 50% load
14 h
Display
control board
Sockets
2x16A, 1x32A
ATS Connector
yes
Starter battery
yes
Transportation kit
1278
Frequency
50 Hz
Engine type
4-stroke
Starting system
electro
Maximum current
32 A
Voltage regulator
AVR
Power Factor
1 Cosφ
Output 12V
no
Sound power level
LpA 53 dB, LwA 81 dB dB(A)
Dimensions (L/W/H)
950 x 575 x 765 mm
Weight
155 kg
  • Original DAEWOO 4-stroke Diesel engine
  • Super Silent soundproof casing
  • Digital control board with hour meter
  • Stable running and up to 15% fuel economy
  • ATS - automatic transfer switch
  • AVR (Automatic Voltage Regulator)
  • Copper alternator winding
  • The over-current smart protection
  • Convenient key start
  • Low-oil level shutdown
  • Automatic air lock removal system
  • Engine warm-up
  • Steel fuel tank
  • Transportation wheels with bearings
