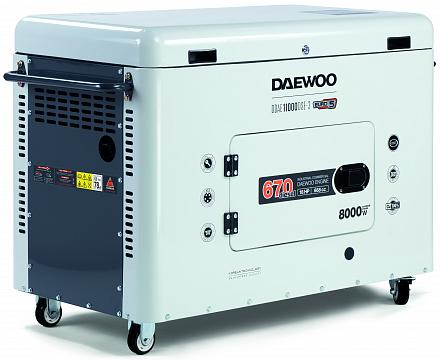

Diesel Generator DAEWOO DDAE 11000DSE-3

Diesel Generator DAEWOO DDAE 11000DSE-3
Diesel Generator DAEWOO DDAE 11000DSE-3
Diesel Generator DAEWOO DDAE 11000DSE-3
Diesel Generator DAEWOO DDAE 11000DSE-3
Diesel Generator DAEWOO DDAE 11000DSE-3
Diesel Generator DAEWOO DDAE 11000DSE-3
Diesel Generator DAEWOO DDAE 11000DSE-3
Diesel Generator DAEWOO DDAE 11000DSE-3
Diesel Generator DAEWOO DDAE 11000DSE-3
Diesel Generator DAEWOO DDAE 11000DSE-3
Diesel Generator DAEWOO DDAE 11000DSE-3
Diesel Generator DAEWOO DDAE 11000DSE-3
Diesel Generator DAEWOO DDAE 11000DSE-3
8.0 kW
Maximum power
7.5 kW
Rated power
668 cm³
Displacement
18 HP
Engine power
Warranty
2499
Where to buy
Find a service
Compare(0)
Diesel Generator DAEWOO DDAE 11000DSE-3
Industrial Engine
Diesel Generator DAEWOO DDAE 11000DSE-3
Intake manifold preheating
Diesel Generator DAEWOO DDAE 11000DSE-3
AVR (Automatic Voltage Regulator)
Diesel Generator DAEWOO DDAE 11000DSE-3
Low noise level
Features
Diesel Generator DAEWOO DDAE 11000DSE-3

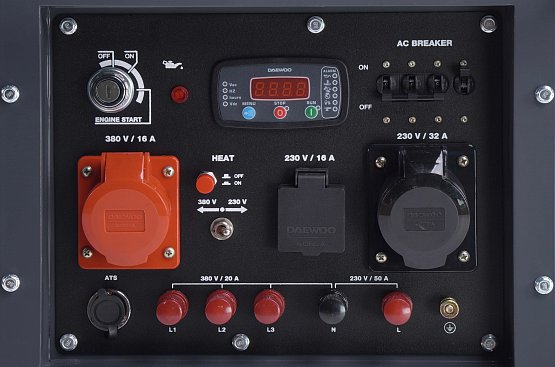

Digital control board
The control board contains a built-in microprocessor that controls automatic start system, remote start system, shut-off protection system. The digital display shows voltage, electric current characteristics and time in operation.
Diesel Generator DAEWOO DDAE 11000DSE-3

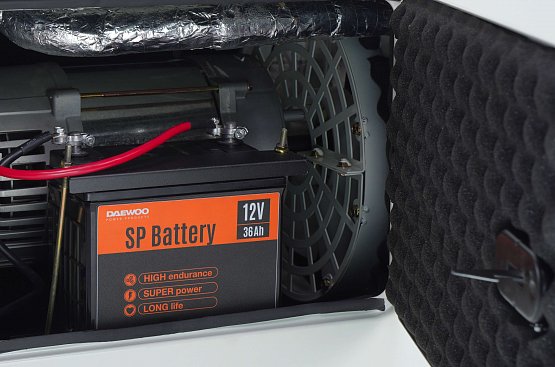

Electric starter
A built-in electric starter and battery make it easier for operators to operate the generator by turning on of the ignition key without pulling the starter. The key makes starting easy and comfortable for users.
Diesel Generator DAEWOO DDAE 11000DSE-3

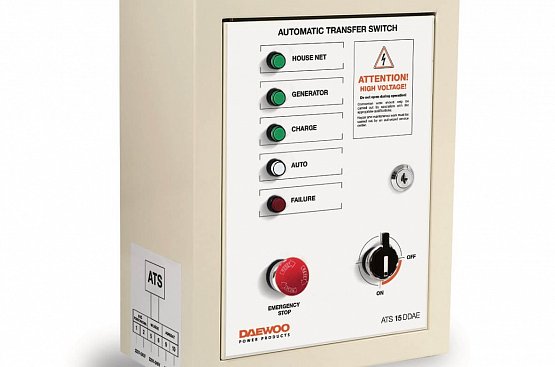

ATS or the automatic transfer switch
The generator is equipped with ATS input. The alternator management system can be connected to the generator during a power outage.
Diesel Generator DAEWOO DDAE 11000DSE-3

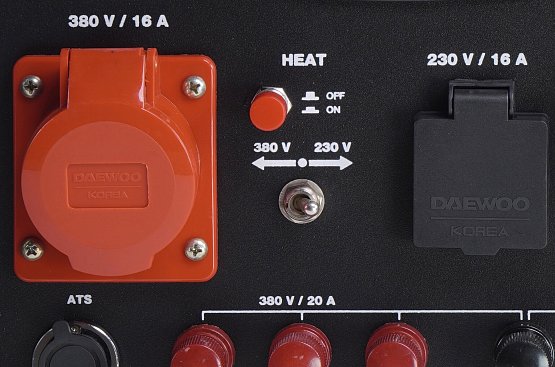

Dual mode operations (230/380V)
The unique Dual Power system makes it possible to use the generator in two modes: for single-phase consumers and three-phase consumers with equally high power efficiency. The selector on the control board allows for changing operating mode with a wave of a hand.
Diesel Generator DAEWOO DDAE 11000DSE-3

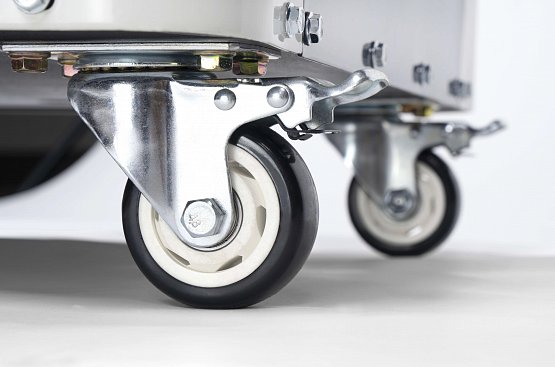

Castor wheels 360°
The wheels facilitate the transportation of the generator. They rotate 360 degrees and make it easy to change the direction of movement. The wheels have a stopper mechanism for reliable fixation of the generator.
Diesel Generator DAEWOO DDAE 11000DSE-3

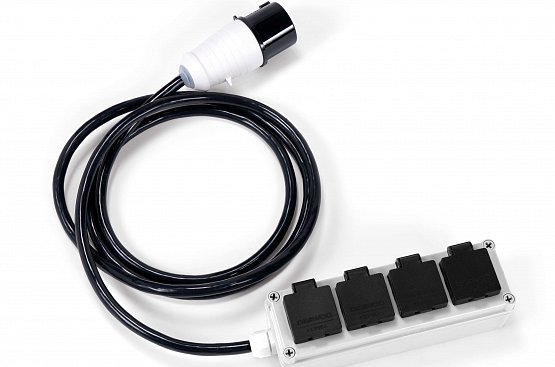

An extension cord with four power outlets
A 16А/220V extension cord 3 meters long is in the kit. The extension cord is highly resistant against wear and tear and mechanical damage and is ideal for use during building and installation procedures.
Technical Data
Maximum power
8.0 kW
Rated power
7.5 kW
8.0
7.5
8.0
7.5
Voltage
230/380 V
Frequency
50 Hz
Engine type
4-stroke
Engine manufacturer
DAEWOO
Engine model
670 diesel
Engine power
18 HP
Displacement
668 cm³
Starting system
electro
Fuel type
Diesel
Fuel tank volume
25 l
Run time 50% load
18.5 h
Maximum current
32 A
Voltage regulator
AVR
Display
control board
Power Factor
0.8 Cosφ
Sockets
1x16A (230V), 1x32A (230V), 1x16A (380V)
Output 12V
no
Starter battery
yes
ATS Connector
yes
Transportation kit
1278
Sound power level
LpA 56 dB(A), LwA 78 dB dB(A dB(A)
Weight
220 kg
  • Original DAEWOO 4-stroke Diesel engine
  • DUAL POWER technology - phase selector switch (230 V/380 V)
  • Super Silent soundproof casing
  • Digital control board with hour meter
  • Stable running and up to 15% fuel economy
  • ATS - automatic transfer switch
  • AVR (Automatic Voltage Regulator)
  • Copper alternator winding
  • The over-current smart protection
  • Convenient key start
  • Low-oil level shutdown
  • Automatic air lock removal system
  • Engine warm-up
  • Sturdy frame
  • Steel fuel tank
  • Transportation wheels with bearings
