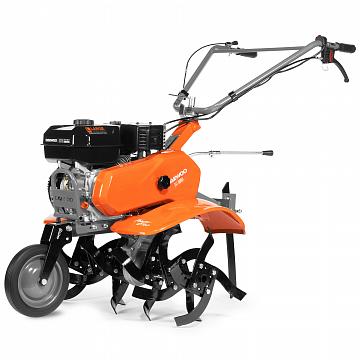

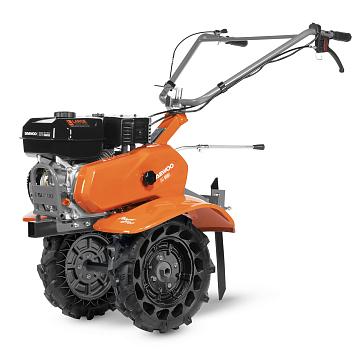

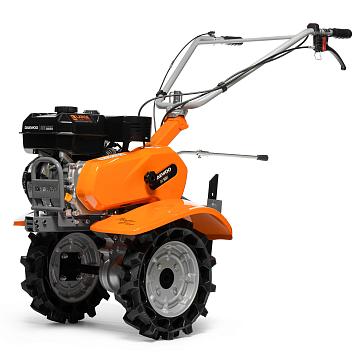

Petrol tiller DAEWOO DAT 900R

7 HP

Power

208 cm³

Displacement

600-900 mm

Working width

360 mm

Working depth

All Technical Data

Upgrade the warranty

639 €

Where to buy

Find a service

DAEWOO 4-stroke engine

Low noise and vibration

V-belt transmission

Corrosion protection

Petrol tiller DAEWOO DAT 900R

Video
Technical Data
Where to buy
Support

Video

Features

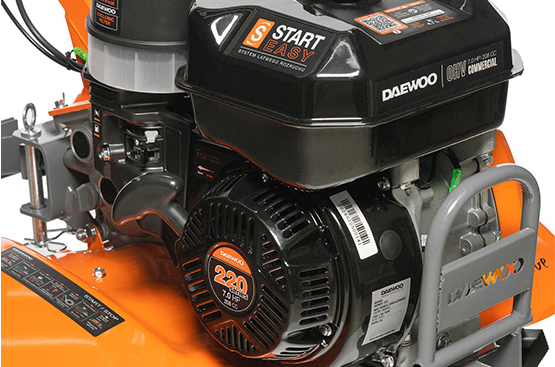

DAEWOO 220 Series Engine

The DAEWOO engine is specifically designed for tillers an cutivators. It features increased torque and an extended engine service life. Capacious 4,7-litre fuel tank

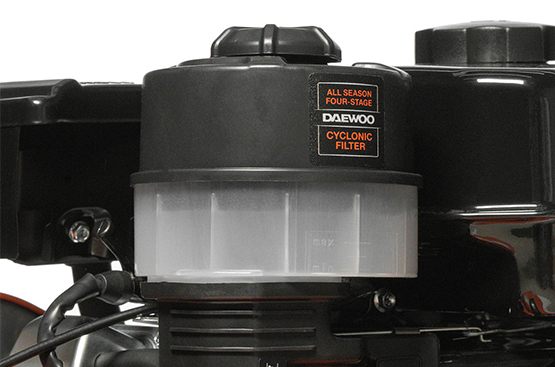

Air Filter with Cyclone System

A high-capacity filter featuring a multi-stage air purification system for operation in heavy, dusty conditions. It protects the engine from contaminated air intake, extending its lifespan.

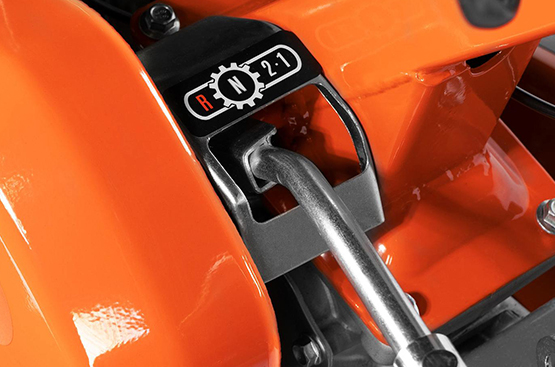

2+1 Mechanical Gearbox

Shaft speed:

1st gear: 107 rpm
2nd gear: 147 rpm
Reverse: 80 rpm

The wide range of rotation speeds allows for selecting the optimal operating mode and enables the use of the cultivator with various attachments.

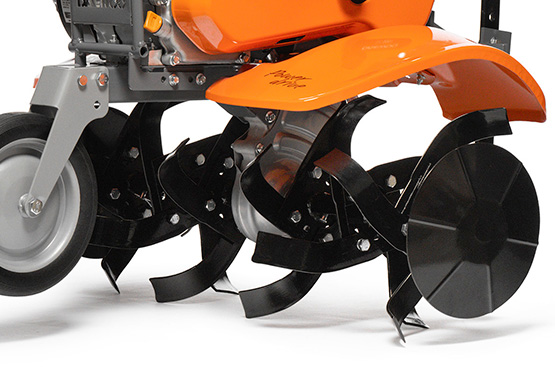

Forged Sabre-Shaped Tines

24 (6×4) tines with adjustable working width from 300 to 850 mm. The sabre-like shape ensures full-depth soil penetration and promotes uniform tilling across various soil densities.

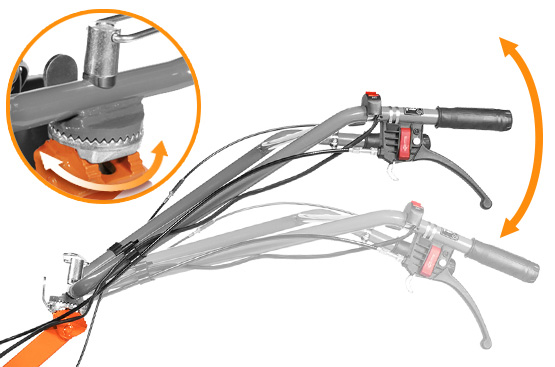

Adjustable Control Handles

Allows for horizontal and vertical adjustment of the control handles to ensure the optimal handlebar position during operation.

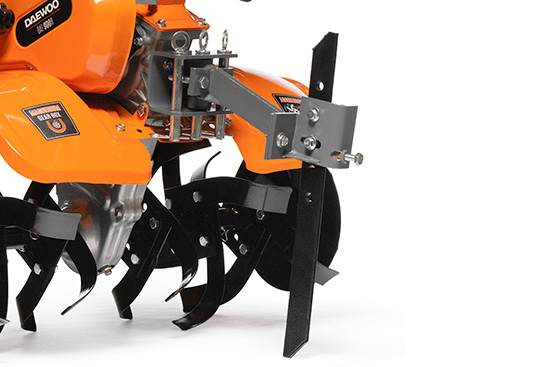

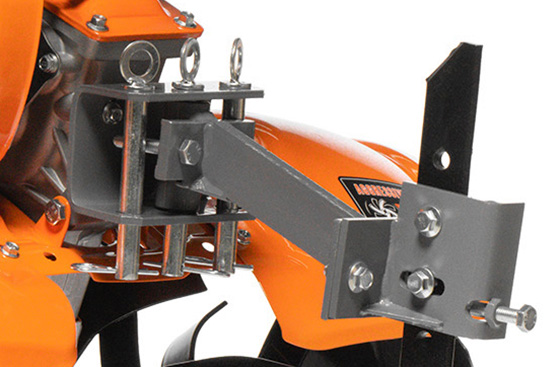

Universal Hitch

The free-mount hitch system facilitates straight-line movement when working with attachments, which can be installed without the need for additional adapters.

Reinforced Depth Skids

The depth skid (drag bar) is made of high-strength steel with a large safety margin. It allows for setting the required soil processing depth.

Technical Data

Power

7 HP

Engine type

OHV, 4-stroke

Displacement

208 cm³

Engine manufacturer

DAEWOO

Engine model

215 series

Oil volume

0,6 l

Fuel tank volume

4.7 l

Working width

600-900 mm

Working depth

360 mm

Number of blades

24 pc.

Number of cutters

6 pc.

Transmission type

mechanical gearbox

Number of speeds forward

Number of speeds reverse

Handle adjustment

in 4 directions

Diameter of cutters

360 mm

Dimensions of packing (L/W/H)

570/420/675 mm

Weight

61,6 kg
