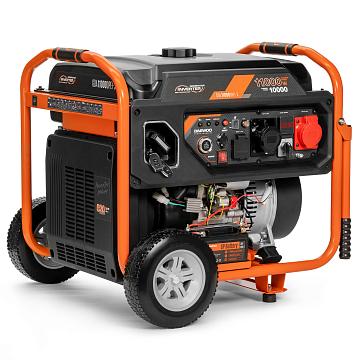

Inverter Petrol Generator DAEWOO GDA 11000DPEi-3

10/11 kW

Maximum power 230V / 400V

10/11 kW

Rated power 230V / 400V

520 cm³

Displacement

20 HP

Engine power

All Technical Data

Warranty

Coming soon

Where to buy

Find a service

Compare(0)

DAEWOO 4-stroke engine

Alternator copper winding

Inverter technology

Sensitive electronics protection

Features

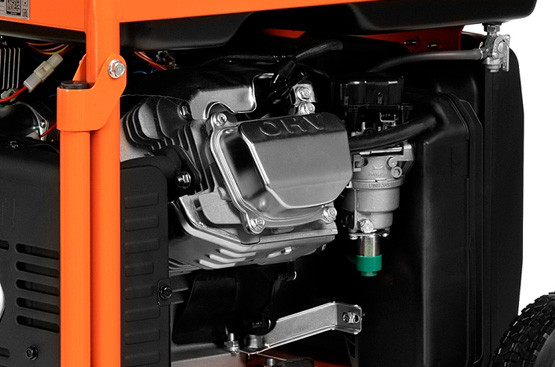

Professional DAEWOO engine

The professional DAEWOO Series 520 engine is specifically designed for inverter generators. It stands out for its reliability, extended motor life, lower noise and vibration levels.

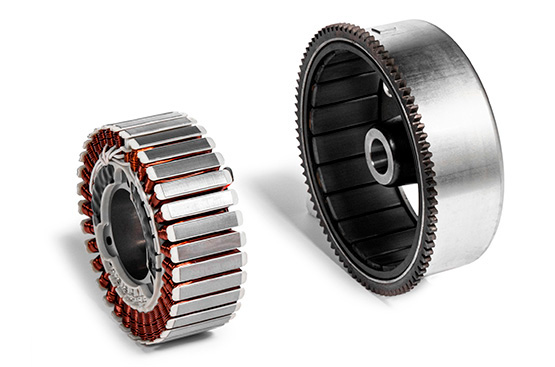

Brushless alternator

A compact brushless alternator with copper windings ensures high efficiency of the power unit. The absence of brushes increases the reliability and durability of the generator.

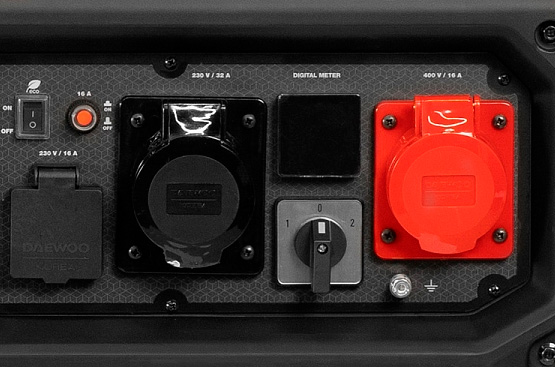

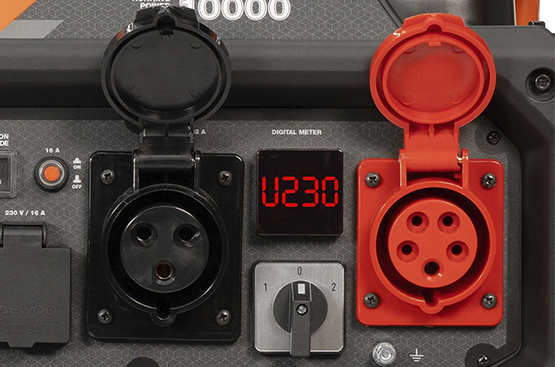

Two operating modes: 230/400 V

The unique Dual Power system allows the generator to be used in two modes – for single-phase and three-phase loads, providing equally high power output in both cases. The selector on the control panel allows simple switching between generator operating modes.

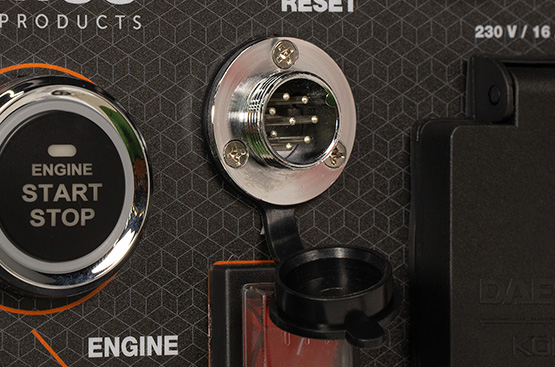

ATS – Automatic Start System

The generator supports compatibility with automatic transfer switch blocks and is equipped with a connector for connecting a generator management system in case of power failure.

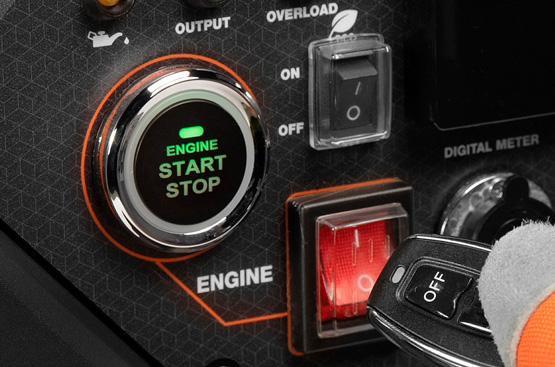

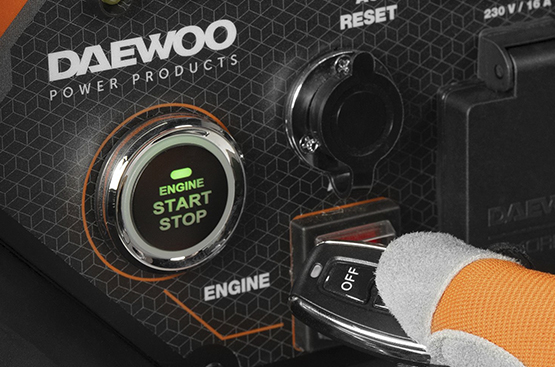

Keyless electric start

The generator can be easily started with just one button press. The choke closes and opens automatically.

Pure sine wave current

The inverter module produces a stable alternating current sine wave, safe for sensitive electrical devices

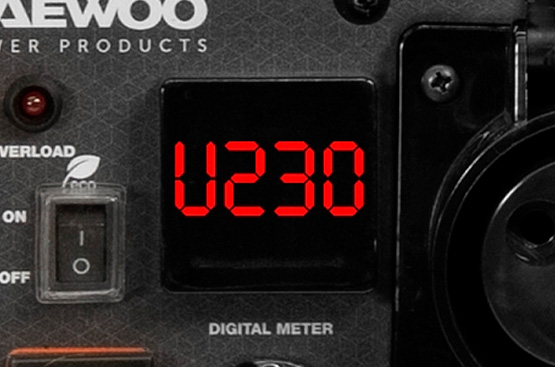

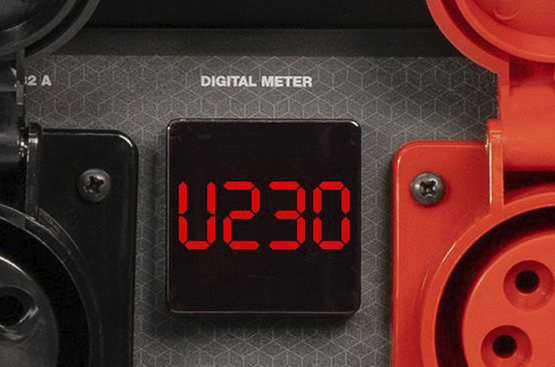

Multifunctional display

Main operational parameters of the generator are displayed sequentially on a clear electronic screen.

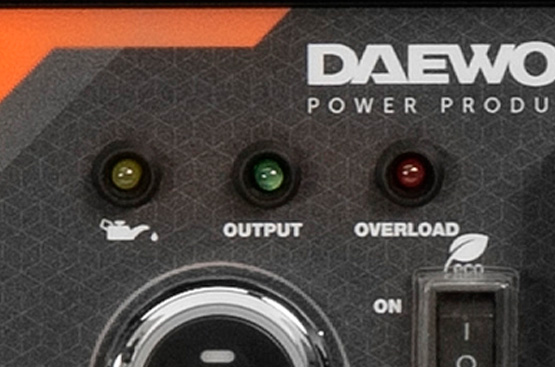

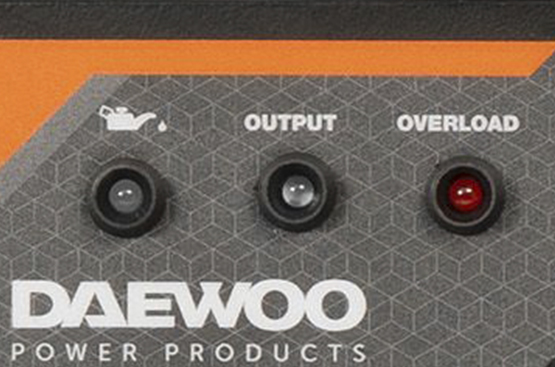

Operation mode indicators

Output voltage indicator. Lights green when the generator operates normally. Overload indicator. Does not light up when the generator operates normally. Low oil level indicator. Does not light up when the generator operates normally.

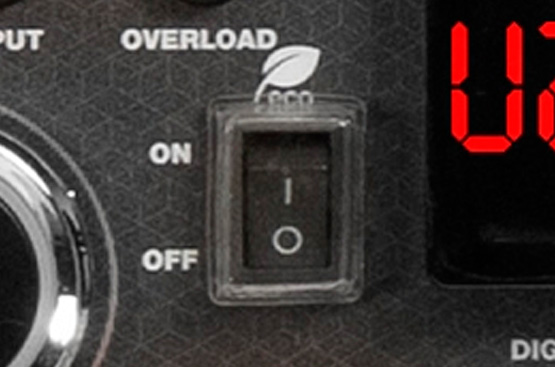

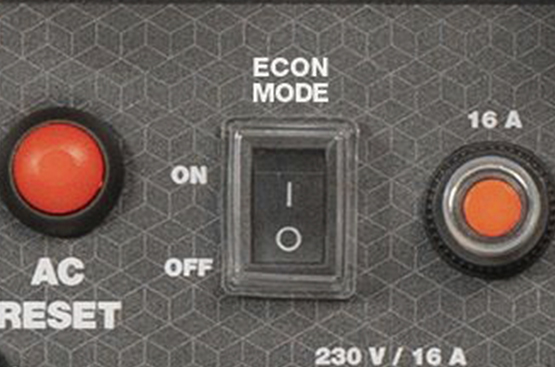

ECO mode

In this mode, the generator automatically adjusts engine rotation speed depending on the connected load. Its use increases engine life, reduces fuel consumption, and decreases noise levels during operation.

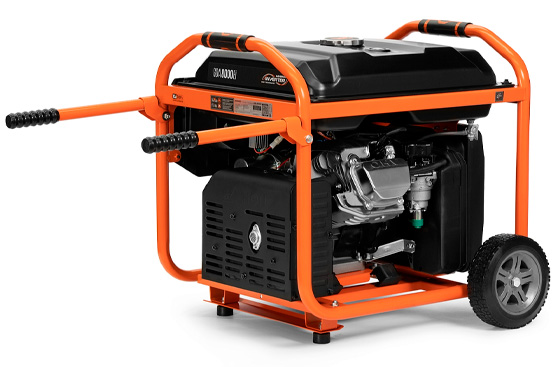

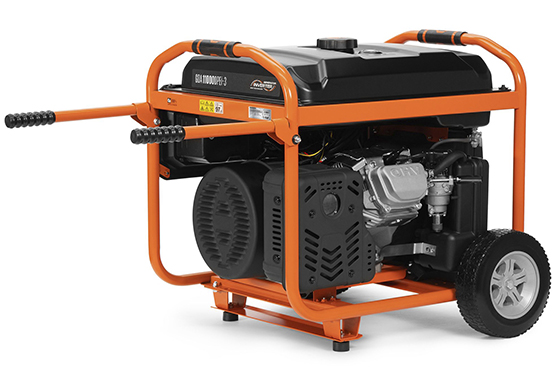

Transportation set included

Consists of wheels, parking supports, and a folding handle.

Technical Data

Maximum power 230V / 400V

10/11 kW

Rated power 230V / 400V

10/11 kW

Voltage

230/400 V

Sockets

1х16A [230B] 1x32A [230B] 1x16A [400B]

ATS Connector

yes

Display

3 in 1

Run time 50% load

8 h

Sound power level

97 dB(A)

Displacement

520 cm³

Engine power

20 HP

Engine model

DAEWOO Series 520

Engine type

4-stroke

Engine manufacturer

DAEWOO

Fuel type

Petrol

Fuel tank volume

40 l

Oil volume

1.2 l

Starter battery

yes

Starting system

manual-electro

Dimensions (L/W/H)

810х570х600 mm

Weight

86 kg

Professional DAEWOO Engine
Quick start
Voltage indicator
Smart overload protection
Oil level sensor
Low noise level
Inverter technology
Metal fuel tank
ATS – Automatic Start System (compatible with models ATS 15-220GDA, ATS 15-380GDA)
100% copper alternator
