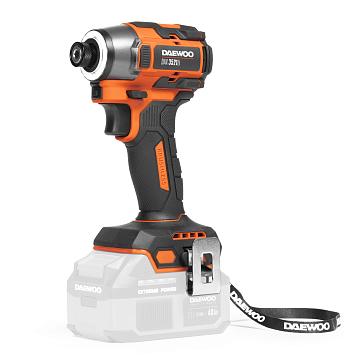

Impact driver cordless DAEWOO DAX 3521Li

Impact driver cordless DAEWOO DAX 3521Li
Impact driver cordless DAEWOO DAX 3521Li
Impact driver cordless DAEWOO DAX 3521Li
Impact driver cordless DAEWOO DAX 3521Li
Impact driver cordless DAEWOO DAX 3521Li
Impact driver cordless DAEWOO DAX 3521Li
Impact driver cordless DAEWOO DAX 3521Li
Impact driver cordless DAEWOO DAX 3521Li
Impact driver cordless DAEWOO DAX 3521Li
Impact driver cordless DAEWOO DAX 3521Li
Impact driver cordless DAEWOO DAX 3521Li
Impact driver cordless DAEWOO DAX 3521Li
21 W
Power
220 Nm
Max. torque
6,35 (1\4" hex)
Chuck type
4
Number of speeds
Warranty
79
Where to buy
Find a service
Compare(0)
Impact driver cordless DAEWOO DAX 3521Li
21V Li-Ion battery
Impact driver cordless DAEWOO DAX 3521Li
LED lighting
Impact driver cordless DAEWOO DAX 3521Li
Reverse
Features
Impact driver cordless DAEWOO DAX 3521Li
21V Li-ion unified platform
The Model is compatible with all battery tools and batteries of the DAEWOO 21V line.


Impact driver cordless DAEWOO DAX 3521Li
Brushless motor
The brushless motor delivers high power with lower energy consumption, allowing up to 50% longer runtime on a single battery charge.
Impact driver cordless DAEWOO DAX 3521Li
Torque 220 Nm
Maximum torque of 220 Nm enables the screwdriver to handle various tasks, even the most challenging ones.
Impact driver cordless DAEWOO DAX 3521Li
Quick-release 1/4" metal chuck
Provides quick installation of accessories and secure fixation during operation.The hexagonal chuck with 1/4" HEX fitting allows using the tool with any accessory that has this type of shank.
Impact driver cordless DAEWOO DAX 3521Li
Electric Control Panel
The control panel located at the bottom of the device allows selecting preset torque settings and automatic operating modes.
Impact driver cordless DAEWOO DAX 3521Li
Torque adjustment
The screwdriver is equipped with 4 preset torque modes:

«1» - 20 Nm
«2» - 30 Nm
«3» - 80 Nm
«4» - 220 Nm

Switching between these modes is done via the «Nm» button on the control panel.
Impact driver cordless DAEWOO DAX 3521Li
Intelligent operating modes
The screwdriver features 4 intelligent operating modes:

«A» - Full-speed tightening. Full-speed loosening with automatic stop when fastener is fully unscrewed.

«W» - Minimum speed rotation at start-up followed by automatic increase upon load detection.

«T1» - Maximum speed rotation initially, then automatically stops when load increases. Stopping duration varies based on fastener and material.

«T2» - Starts rotating at maximum speed, then automatically slows down as load increases
Impact driver cordless DAEWOO DAX 3521Li
Quick mode switching button
Allows quick switching between torque settings. Additionally, it can be used to quickly switch between normal mode and one of the saved intelligent operating modes. If necessary, the quick access button can be disabled.
Impact driver cordless DAEWOO DAX 3521Li
Ring-shaped LED lighting
Provides bright illumination of the working area. 3 brightness levels and an option to turn off allow convenient use or deactivation of the light.The "flashlight" mode allows using the lighting without turning on the screwdriver.
Impact driver cordless DAEWOO DAX 3521Li
Metal clip
Enables secure attachment of the screwdriver to the belt of a worker during operations.
Technical Data
Power
21 W
Capacity
- Ah
Battery type
Li-Ion
Engine
Brushless
Number of speeds
4
Max. torque
220 Nm
Torque settings
20/30/80/220
Idling speed
0-3600 rpm
Impact rate
0-3800 bpm
Chuck type
6,35 (1\4" hex)
Forward and reverse rotation
yes
Weight netto
1,6 kg
Dimensions
377х143х252 mm
  • Brushless motor
  • Quick-release chuck
  • LED lighting
  • High torque of 220 Nm
  • 4 speed and torque modes
  • Compact design
  • Ergonomic rubberized grip
  • 4 operation modes
  • Overcharge and overheating protection
  • Overload and short circuit protection
