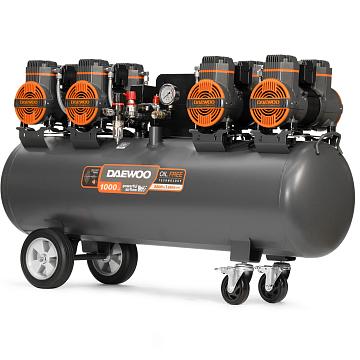

Oil Free Air Compressor DAEWOO DAC 1000S

5.8 (1.45х4) kW

Power consumption

1000 l/min

Performance

8 bar

Maximum pressure

120 l

Tank volume

All Technical Data

Upgrade the warranty

1159 €

Where to buy

Find a service

Oil-free

Four degrees of protection

Low noise

Features

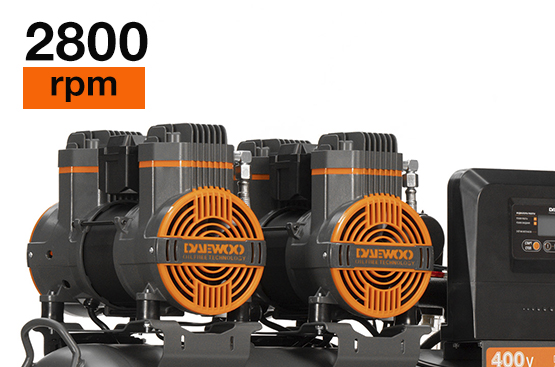

DAEWOO Brushless motor

High-performance and quiet electric motor. Features 5800 W power and 2800 rpm speed. Specifically designed for air compressors, it offers high durability and operates significantly quieter than counterparts.

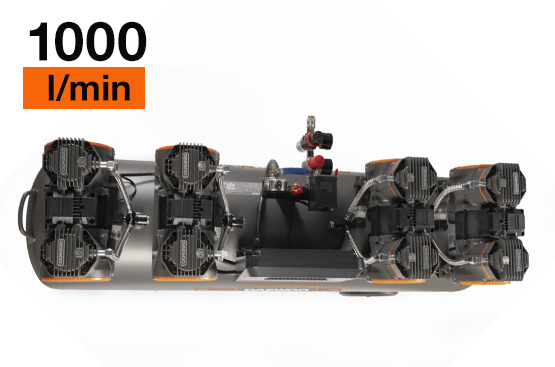

High Performance

An innovative built-in filter ensures optimal air intake and filtration. High capacity of up to 1000 l/min. Separate air intake lines to the receiver.

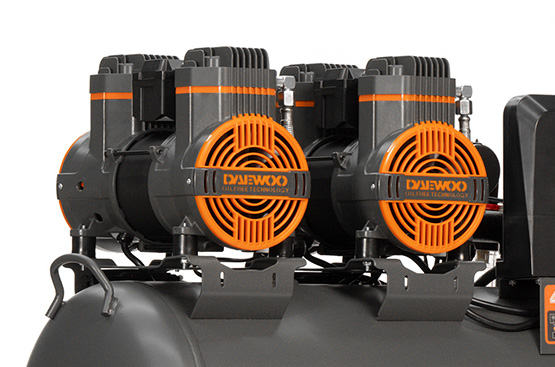

Efficient Cooling System

Enlarged heat-dissipating fins on the cylinder block ensure effective cooling and long-term continuous operation. Two large fans create an enhanced airflow, cooling the piston group and motor 40% more effectively.

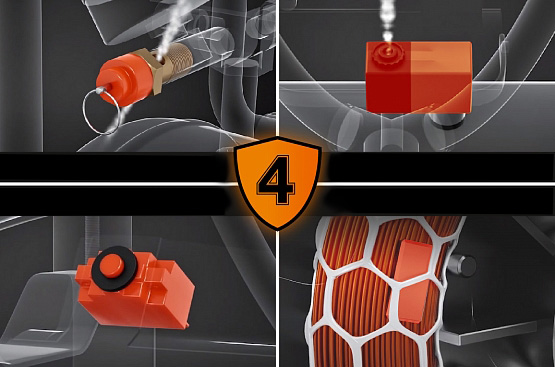

4 Levels of Compressor Protection

Safety valve: triggers when the pressure in the receiver reaches 8 bar.
Solenoid valve: automatically relieves pressure in the lines after the compressor is switched off.
Overload protection: activates in case of excessively low or high input voltage, shutting down the unit.
Overheat protection: automatically shuts down the unit if the operating temperature is exceeded, preventing overheating.

Features

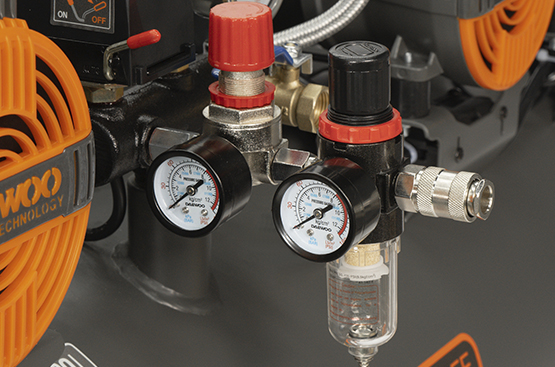

Two pressure gauges for precise output pressure adjustment via a pressure regulator. A ¼" quick-connect outlet simplifies connection and cuts off air supply when the hose is disconnected.

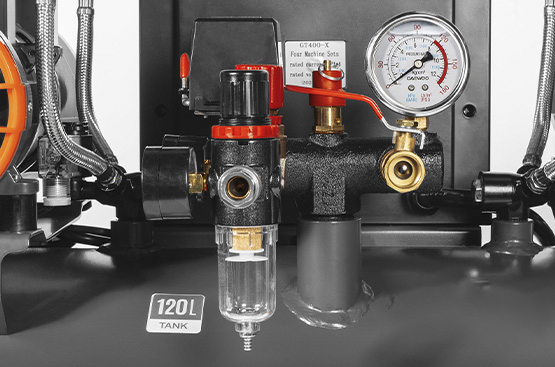

Air dryer with preassure gauge

Removes excess moisture and condensate from the pneumatic line, providing additional purification of the supplied air.

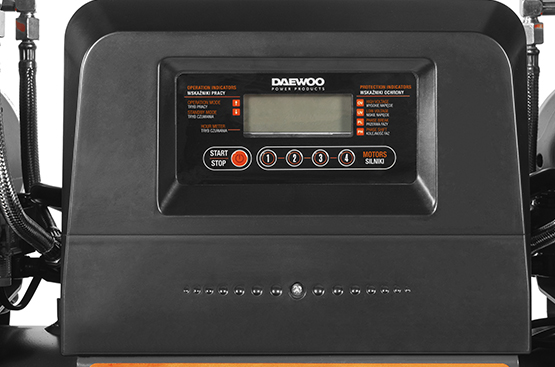

Digital Controller with LCD Display

Allows real-time monitoring of the compressor's operating mode, status, and parameters, as well as device control.

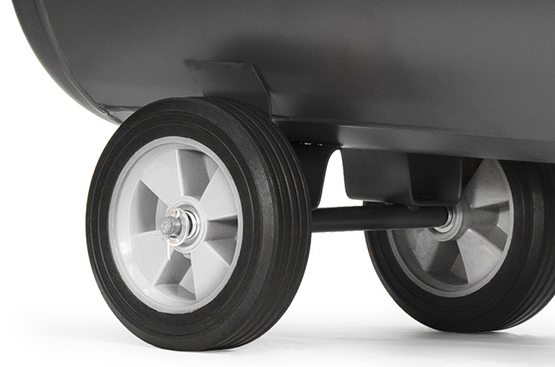

Enlarged Transport Wheels

Allow the compressor to be moved quickly and easily to any part of the workspace.

Technical Data

Performance

1000 l/min

Tank volume

120 l

Maximum pressure

8 bar

Number of cylinders

8 pc.

Protection class

IP21

Transmission type

direct

Number of manometers

2 pc.

Anti-vibration feet

16 pc.

Power consumption

5.8 (1.45х4) kW

Engine speed

2800 rpm

Engine manufacturer

DAEWOO

Phase

Voltage

400 V

Weight

95 kg

Dimensions of packing (L/W/H)

1300x415x755 mm

Package Includes

Compressor
Air filter — 8 pcs.
Rubber mounts — 16pcs.
Transport wheels — 4 pcs.
Air dryer
User manual
Warranty card
