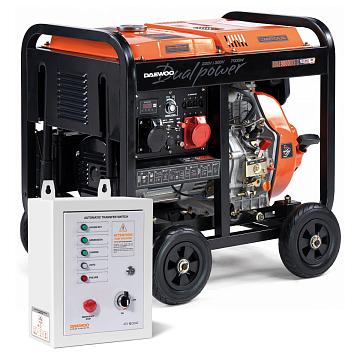

  • Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .

Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .

Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .
6.3 kW
Maximum power
6.0 kW
Rated power
498 cm³
Displacement
12 HP
Engine power
All Technical Data
Warranty
1899 €
Where to buy
Find a service
Compare(0)
Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Commercial Engine
Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Intake manifold preheating
Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .
AVR (Automatic Voltage Regulator)
Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Alternator copper winding
Features
Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .

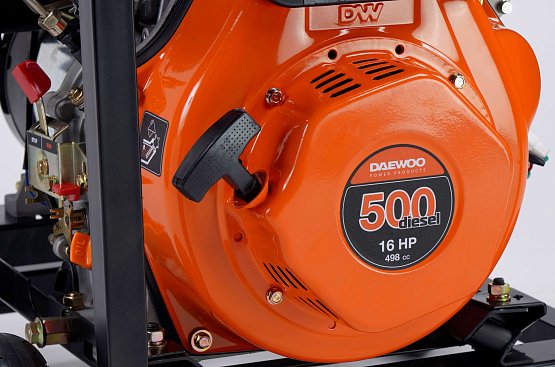

DAEWOO commercial engine
Commercial engine guarantees stable current feed. It is highly reliable and efficient even at high temperatures thanks to an air cooling system. Fuel economy allows for long operation without additional fueling.
Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .

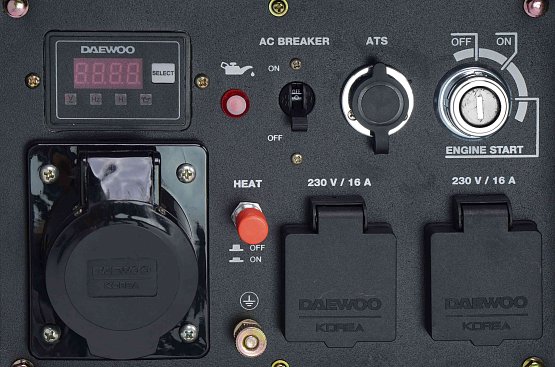

Multifunctional display
The Multifunctional display shows all key operation parameters in real-time such as: voltage, frequency, and the number of hours of operation which can be sustained before the next generator maintenance period falls due.
Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .

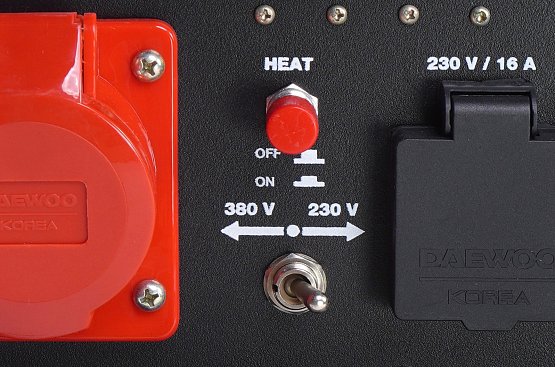

Dual mode operations (230/400V)
The unique Dual Power system makes it possible to use the generator in two modes: for single-phase consumers and three-phase consumers with equally high power efficiency. The selector on the control board allows for changing operating mode with a wave of a hand.
Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .

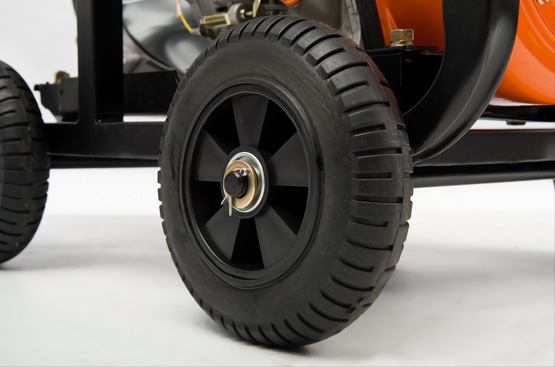

Enlarged transportation wheels
Enlarged transportation wheels are made of solid rubber, equipped with steel wheel disks with bearings and are puncture resistant. They need no inflation or maintenance during their lifetime. Their large diameter makes it easy for these wheels to move the generator on an uneven surface.
Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .

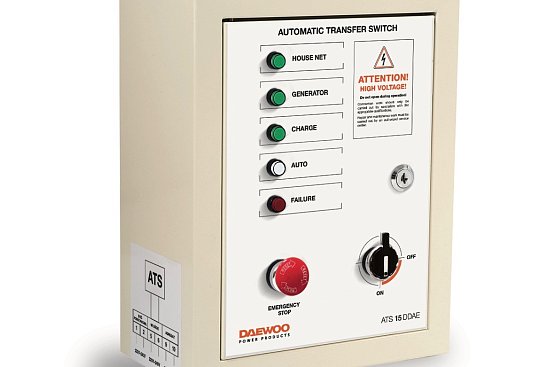

ATS or the automatic transfer switch
The generator is equipped with ATS input. The alternator management system can be connected to the generator during a power outage.
Diesel Generator DDAE 9000DXE-3 + Automatic Transfer Switch DAEWOO ATS15-DDAE .

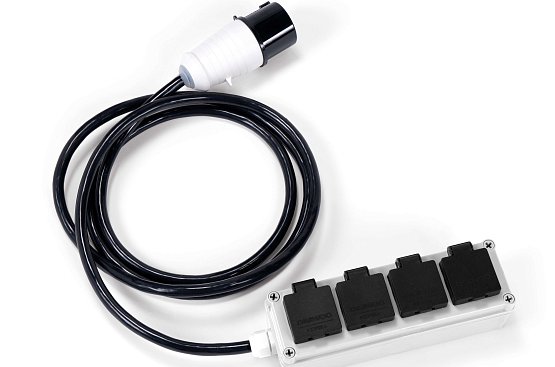

An extension cord with four power outlets
A 16А/220V extension cord 3 meters long is in the kit. The extension cord is highly resistant against wear and tear and mechanical damage and is ideal for use during building and installation procedures.
Technical Data
Maximum power
6.3 kW
Rated power
6.0 kW
Voltage
230/380 V
Engine type
4-stroke
Engine manufacturer
DAEWOO
Engine model
500 diesel
Engine power
12 HP
Displacement
498 cm³
Starting system
manual-electro
Fuel type
Diesel
Oil volume
1.65 l
Fuel tank volume
13.5 l
Run time 50% load
13 h
Voltage regulator
AVR
Display
5 in 1
Power Factor
0,8 Cosφ
Sockets
1x32A (230V), 1x16A (380V)
Starter battery
yes
ATS Connector
yes
Sound power level
69 dB(A)
Dimensions (L/W/H)
745 x 510 x 630 mm
Weight
108 kg
  • Daewoo Diesel engine
  • Phase selector switch (230V/380V)
  • Stable running and up to 15% fuel economy
  • ATS - automatic transfer switch
  • AVR (Automatic Voltage Regulator)
  • Copper alternator winding
  • The over-current smart protection
  • Convenient key start
  • Low-oil level shutdown
  • Automatic air lock removal system
  • Engine warm-up
  • Multifunctional display
  • Sturdy frame
  • Steel fuel tank
  • Transportation wheels with bearings
