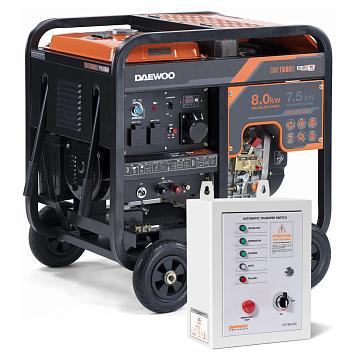

  • Diesel Generator DDAE 11000XE + Automatic Transfer Switch DAEWOO ATS15-DDAE .

Diesel Generator DDAE 11000XE + Automatic Transfer Switch DAEWOO ATS15-DDAE .

Diesel Generator DDAE 11000XE + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Diesel Generator DDAE 11000XE + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Diesel Generator DDAE 11000XE + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Diesel Generator DDAE 11000XE + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Diesel Generator DDAE 11000XE + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Diesel Generator DDAE 11000XE + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Diesel Generator DDAE 11000XE + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Diesel Generator DDAE 11000XE + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Diesel Generator DDAE 11000XE + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Diesel Generator DDAE 11000XE + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Diesel Generator DDAE 11000XE + Automatic Transfer Switch DAEWOO ATS15-DDAE .
8 kW
Maximum power
7.5 kW
Rated power
668 cm³
Displacement
18 HP
Engine power
All Technical Data
Warranty
2499 €
Where to buy
Find a service
Compare(0)
Diesel Generator DDAE 11000XE + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Commercial Engine
Diesel Generator DDAE 11000XE + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Intake manifold preheating
Diesel Generator DDAE 11000XE + Automatic Transfer Switch DAEWOO ATS15-DDAE .
AVR (Automatic Voltage Regulator)
Diesel Generator DDAE 11000XE + Automatic Transfer Switch DAEWOO ATS15-DDAE .
Alternator copper winding
Features
Diesel Generator DDAE 11000XE + Automatic Transfer Switch DAEWOO ATS15-DDAE .

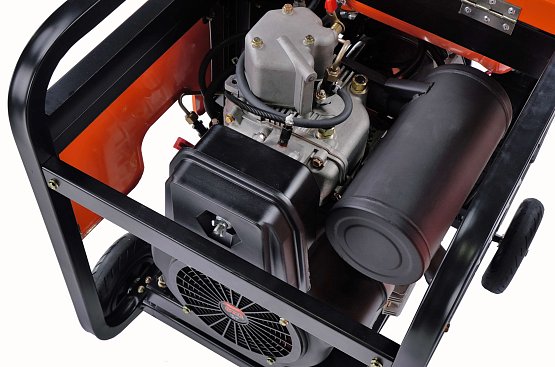

DAEWOO commercial engine
Commercial engine guarantees stable current feed. It is highly reliable and efficient even at high temperatures thanks to an air cooling system. Fuel economy allows for long operation without additional fueling.
Diesel Generator DDAE 11000XE + Automatic Transfer Switch DAEWOO ATS15-DDAE .

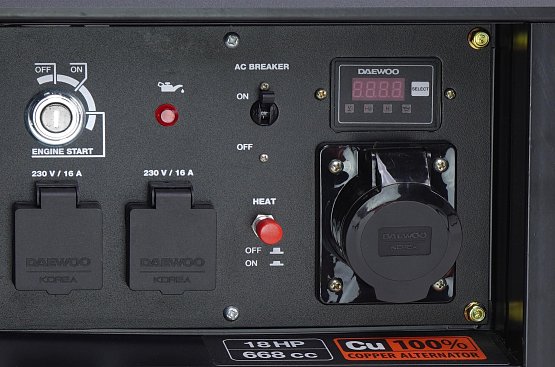

Multifunctional display
The Multifunctional display shows all key operation parameters in real-time such as: voltage, frequency, and the number of hours of operation which can be sustained before the next generator maintenance period falls due.
Diesel Generator DDAE 11000XE + Automatic Transfer Switch DAEWOO ATS15-DDAE .

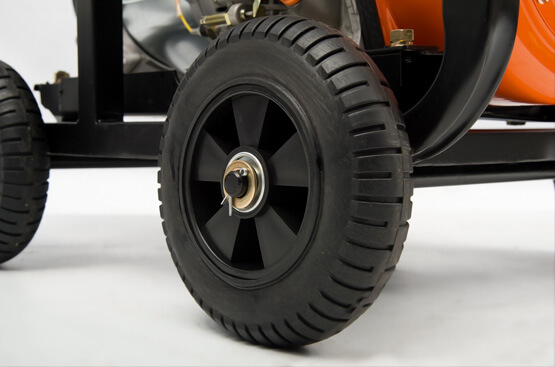

Castor wheels 360°
The wheels facilitate the transportation of the generator. They rotate 360 degrees and make it easy to change the direction of movement. The wheels have a stopper mechanism for reliable fixation of the generator.
Diesel Generator DDAE 11000XE + Automatic Transfer Switch DAEWOO ATS15-DDAE .

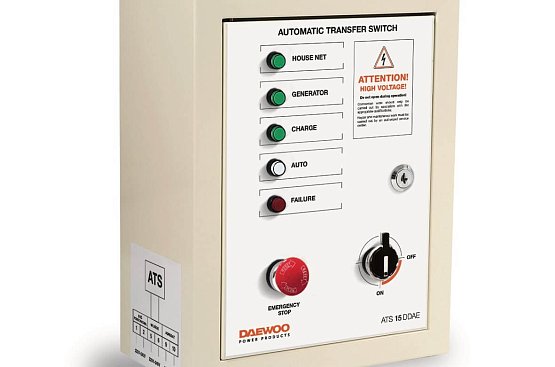

ATS or the automatic transfer switch
The generator is equipped with ATS input. The alternator management system can be connected to the generator during a power outage.
Technical Data
Maximum power
8 kW
Rated power
7.5 kW
Voltage
230 V
Engine type
4-stroke
Engine manufacturer
DAEWOO
Engine model
670 diesel
Engine power
18 HP
Displacement
668 cm³
Starting system
electro
Fuel type
Diesel
Oil volume
2.1 l
Fuel tank volume
13.5 l
Run time 50% load
10 h
Voltage regulator
AVR
Display
5 in 1
Power Factor
1 Cosφ
Sockets
2x16A, 1x32A
Starter battery
yes
ATS Connector
yes
Sound power level
68 dB(A)
Dimensions (L/W/H)
800 x 550 x 770 mm
Weight
120 kg
  • Daewoo Diesel engine
  • Stable running and up to 15% fuel economy
  • ATS - automatic transfer switch
  • AVR (Automatic Voltage Regulator)
  • Copper alternator winding
  • The over-current smart protection
  • Convenient key start
  • Low-oil level shutdown
  • Automatic air lock removal system
  • Engine warm-up
  • Multifunctional display
  • Sturdy frame
  • Steel fuel tank
  • Transportation wheels with bearings
