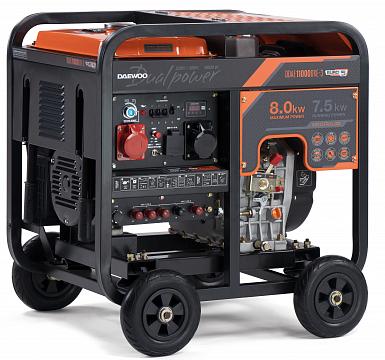

Diesel Generator DAEWOO DDAE 11000DXE-3

8.0 kW

Maximum power

7.5 kW

Rated power

668 cm³

Displacement

18 HP

Engine power

All Technical Data

Warranty

3049 €

Where to buy

Find a service

Compare(0)

Commercial Engine

Intake manifold preheating

AVR (Automatic Voltage Regulator)

Alternator copper winding

Features

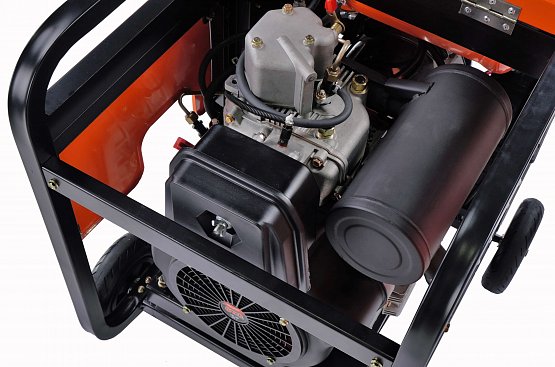

DAEWOO commercial engine

Commercial engine guarantees stable current feed. It is highly reliable and efficient even at high temperatures thanks to an air cooling system. Fuel economy allows for long operation without additional fueling.

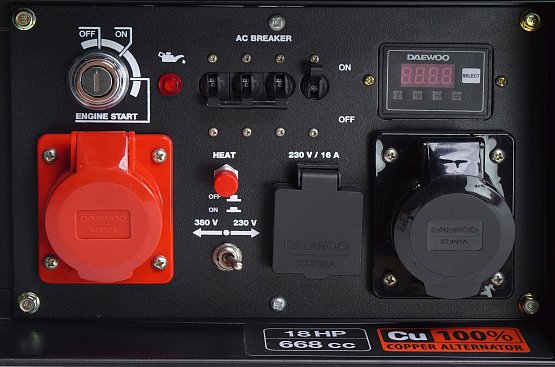

Multifunctional display

The Multifunctional display shows all key operation parameters in real-time such as: voltage, frequency, and the number of hours of operation which can be sustained before the next generator maintenance period falls due.

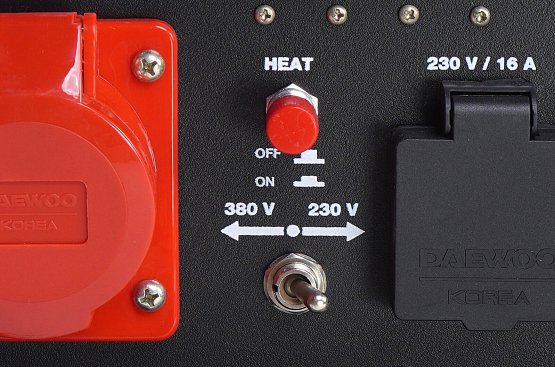

Dual mode operations (230/400V)

The unique Dual Power system makes it possible to use the generator in two modes: for single-phase consumers and three-phase consumers with equally high power efficiency. The selector on the control board allows for changing operating mode with a wave of a hand.

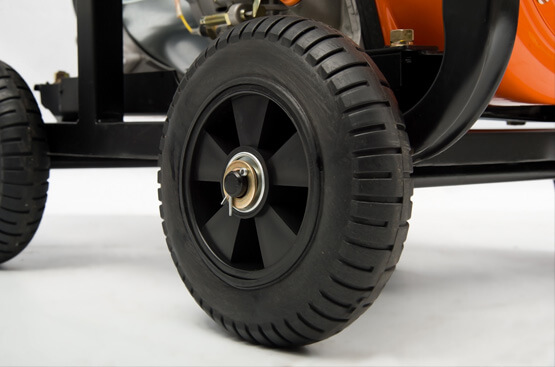

Castor wheels 360°

The wheels facilitate the transportation of the generator. They rotate 360 degrees and make it easy to change the direction of movement. The wheels have a stopper mechanism for reliable fixation of the generator.

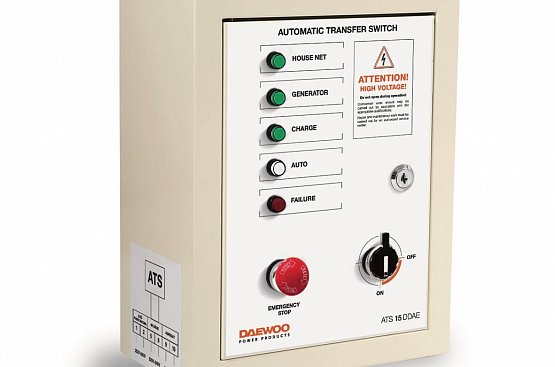

ATS or the automatic transfer switch

The generator is equipped with ATS input. The alternator management system can be connected to the generator during a power outage.

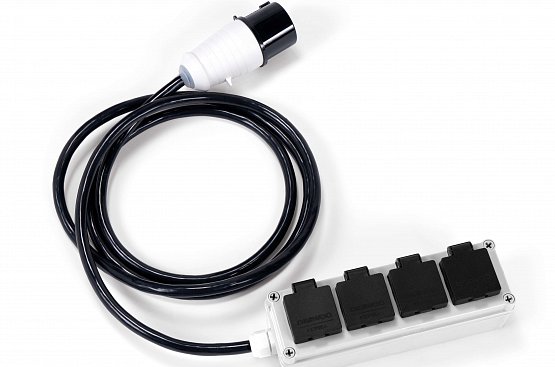

An extension cord with four power outlets

A 16А/220V extension cord 3 meters long is in the kit. The extension cord is highly resistant against wear and tear and mechanical damage and is ideal for use during building and installation procedures.

Technical Data

Maximum power

8.0 kW

Rated power

7.5 kW

Voltage

230/380 V

Voltage regulator

AVR

Power Factor

0,8 Cosφ

Sockets

1x16A (230V), 1x32A (230V), 1x16A (380V)

ATS Connector

yes

Display

5 in 1

Run time 50% load

10 h

Sound power level

68 dB(A)

Displacement

668 cm³

Engine power

18 HP

Engine model

670 diesel

Engine type

4-stroke

Engine manufacturer

DAEWOO

Fuel type

Diesel

Fuel tank volume

13.5 l

Oil volume

2.1 l

Starter battery

yes

Starting system

electro

Dimensions (L/W/H)

800 x 550 x 770 mm

Weight

120 kg

Daewoo Diesel engine
Phase selector switch (230V/380V)
Stable running and up to 15% fuel economy
ATS - automatic transfer switch
AVR (Automatic Voltage Regulator)
Copper alternator winding
The over-current smart protection
Convenient key start
Low-oil level shutdown
Automatic air lock removal system
Engine warm-up
Multifunctional display
Sturdy frame
Steel fuel tank
Transportation wheels with bearings
