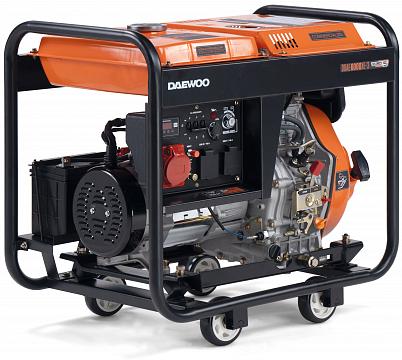

Diesel Generator DAEWOO DDAE 6000XE-3

Diesel Generator DAEWOO DDAE 6000XE-3
Diesel Generator DAEWOO DDAE 6000XE-3
Diesel Generator DAEWOO DDAE 6000XE-3
Diesel Generator DAEWOO DDAE 6000XE-3
Diesel Generator DAEWOO DDAE 6000XE-3
Diesel Generator DAEWOO DDAE 6000XE-3
Diesel Generator DAEWOO DDAE 6000XE-3
Diesel Generator DAEWOO DDAE 6000XE-3
Diesel Generator DAEWOO DDAE 6000XE-3
Diesel Generator DAEWOO DDAE 6000XE-3
5.0 kW
Maximum power
4.5 kW
Rated power
418 cm³
Displacement
11 HP
Engine power
1599
Where to buy
Find a service
Compare(0)
Diesel Generator DAEWOO DDAE 6000XE-3
Commercial Engine
Diesel Generator DAEWOO DDAE 6000XE-3
Intake manifold preheating
Diesel Generator DAEWOO DDAE 6000XE-3
AVR (Automatic Voltage Regulator)
Diesel Generator DAEWOO DDAE 6000XE-3
Alternator copper winding
Features
Diesel Generator DAEWOO DDAE 6000XE-3

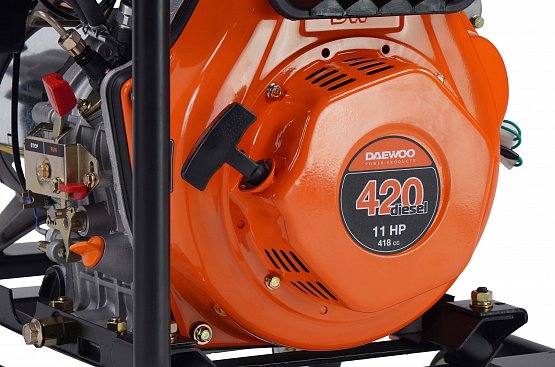

DAEWOO commercial engine
Commercial engine guarantees stable current feed. It is highly reliable and efficient even at high temperatures thanks to an air cooling system. Fuel economy allows for long operation without additional fueling.
Diesel Generator DAEWOO DDAE 6000XE-3

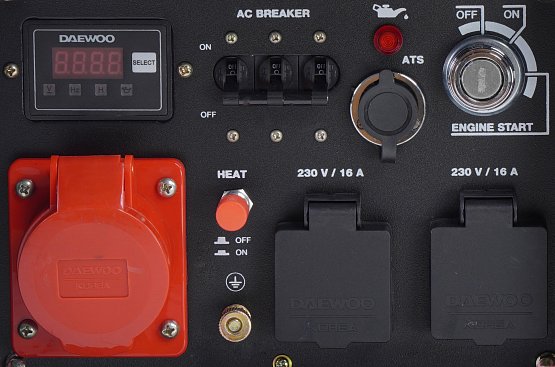

Multifunctional display
The Multifunctional display shows all key operation parameters in real-time such as: voltage, frequency, and the number of hours of operation which can be sustained before the next generator maintenance period falls due.
Diesel Generator DAEWOO DDAE 6000XE-3

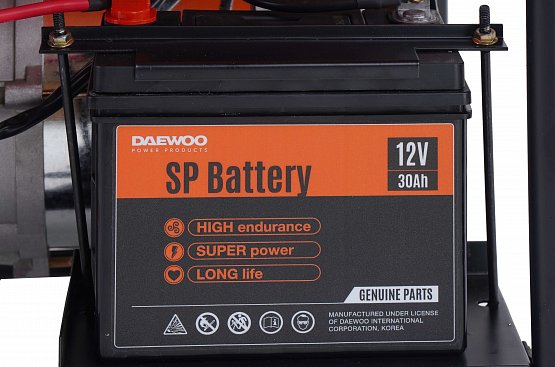

Electric starter
A built-in electric starter and battery make it easier for operators to operate the generator by turning on of the ignition key without pulling the starter. The key makes starting easy and comfortable for users.
Diesel Generator DAEWOO DDAE 6000XE-3

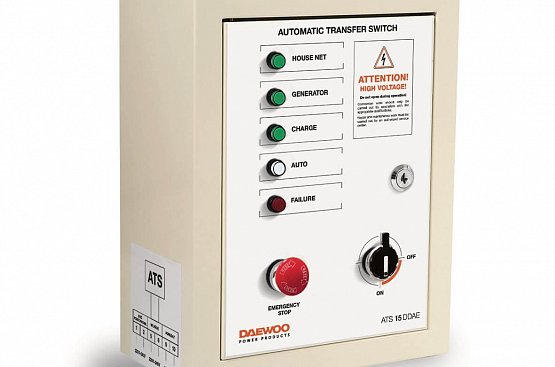

ATS or the automatic transfer switch
The generator is equipped with ATS input. The alternator management system can be connected to the generator during a power outage.
Technical Data
Maximum power
5.0 kW
Rated power
4.5 kW
Voltage
230/380 V
Voltage regulator
AVR
Power Factor
0,8 Cosφ
Sockets
2x16A (230V), 1x16A (380V)
ATS Connector
yes
Display
5 in 1
Run time 50% load
16 h
Sound power level
61 dB(A)
Displacement
418 cm³
Engine power
11 HP
Engine model
420 diesel
Engine type
4-stroke
Engine manufacturer
DAEWOO
Fuel type
Diesel
Fuel tank volume
13.5 l
Oil volume
1.65 l
Starter battery
yes
Starting system
manual-electro
Dimensions (L/W/H)
745 x 510 x 670 mm
Weight
103 kg
  • Daewoo Diesel engine
  • Stable running and up to 15% fuel economy
  • ATS - automatic transfer switch
  • AVR (Automatic Voltage Regulator)
  • Copper alternator winding
  • The over-current smart protection
  • Convenient key start
  • Low-oil level shutdown
  • Automatic air lock removal system
  • Engine warm-up
  • Multifunctional display
  • Sturdy frame
  • Steel fuel tank
  • Transportation wheels with bearings
