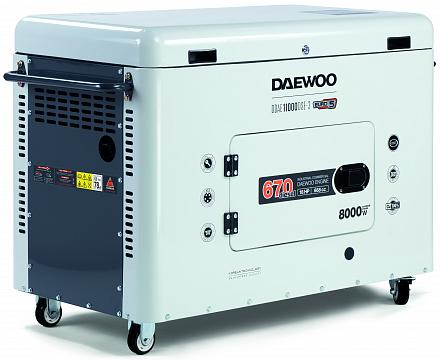

Diesel Generator DAEWOO DDAE 11000DSE-3

8.0 kW

Maximum power

7.5 kW

Rated power

668 cm³

Displacement

18 HP

Engine power

All Technical Data

Warranty

3299 €

Where to buy

Find a service

Compare(0)

Industrial Engine

Intake manifold preheating

AVR (Automatic Voltage Regulator)

Low noise level

Features

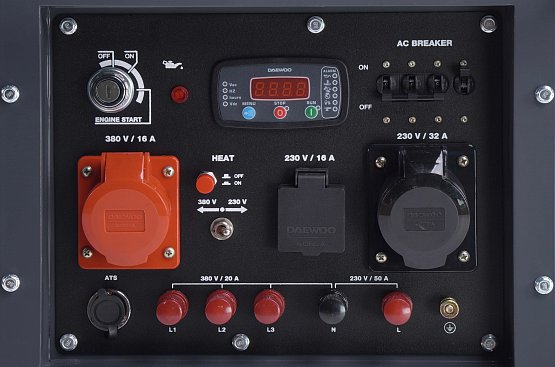

Digital control board

The control board contains a built-in microprocessor that controls automatic start system, remote start system, shut-off protection system. The digital display shows voltage, electric current characteristics and time in operation.

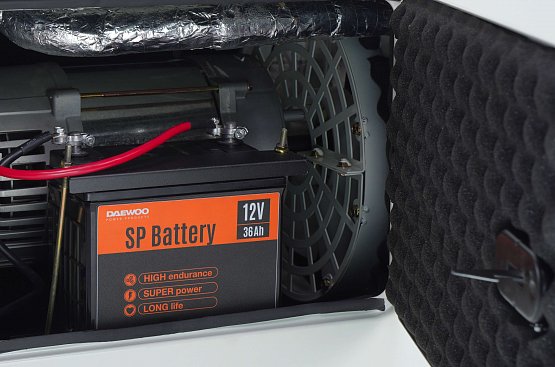

Electric starter

A built-in electric starter and battery make it easier for operators to operate the generator by turning on of the ignition key without pulling the starter. The key makes starting easy and comfortable for users.

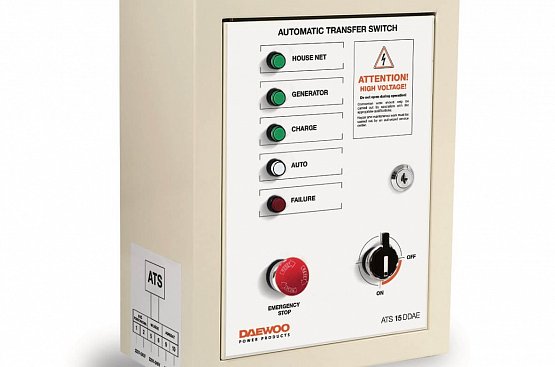

ATS or the automatic transfer switch

The generator is equipped with ATS input. The alternator management system can be connected to the generator during a power outage.

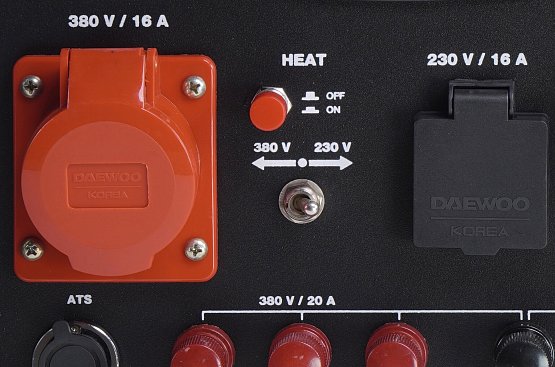

Dual mode operations (230/400V)

The unique Dual Power system makes it possible to use the generator in two modes: for single-phase consumers and three-phase consumers with equally high power efficiency. The selector on the control board allows for changing operating mode with a wave of a hand.

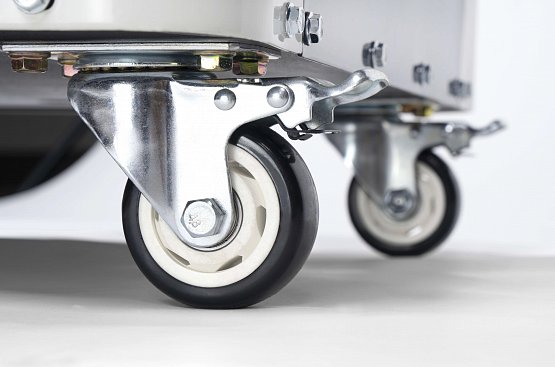

Castor wheels 360°

The wheels facilitate the transportation of the generator. They rotate 360 degrees and make it easy to change the direction of movement. The wheels have a stopper mechanism for reliable fixation of the generator.

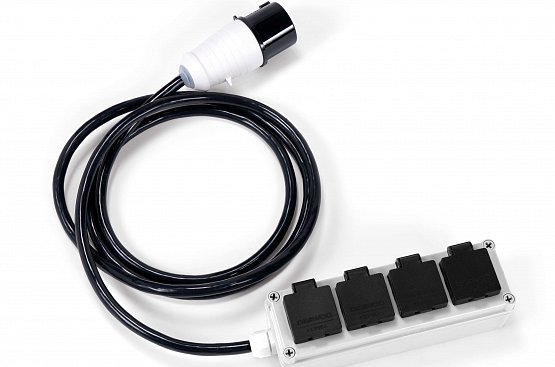

An extension cord with four power outlets

A 16А/220V extension cord 3 meters long is in the kit. The extension cord is highly resistant against wear and tear and mechanical damage and is ideal for use during building and installation procedures.

Technical Data

Maximum power

8.0 kW

Rated power

7.5 kW

Voltage

230/380 V

Voltage regulator

AVR

Power Factor

0.8 Cosφ

Sockets

1x16A (230V), 1x32A (230V), 1x16A (380V)

ATS Connector

yes

Display

control board

Run time 50% load

18.5 h

Sound power level

LpA 56 dB(A), LwA 78 dB dB(A dB(A)

Displacement

668 cm³

Engine power

18 HP

Engine model

670 diesel

Engine type

4-stroke

Engine manufacturer

DAEWOO

Fuel type

Diesel

Fuel tank volume

25 l

Oil volume

2.1 l

Starter battery

yes

Starting system

electro

Dimensions (L/W/H)

1150 x 650 x 890 mm

Weight

220 kg

Original DAEWOO 4-stroke Diesel engine
DUAL POWER technology - phase selector switch (230 V/380 V)
Super Silent soundproof casing
Digital control board with hour meter
Stable running and up to 15% fuel economy
ATS - automatic transfer switch
AVR (Automatic Voltage Regulator)
Copper alternator winding
The over-current smart protection
Convenient key start
Low-oil level shutdown
Automatic air lock removal system
Engine warm-up
Sturdy frame
Steel fuel tank
Transportation wheels with bearings
